Omega Lite ADA Restrooms and Showers

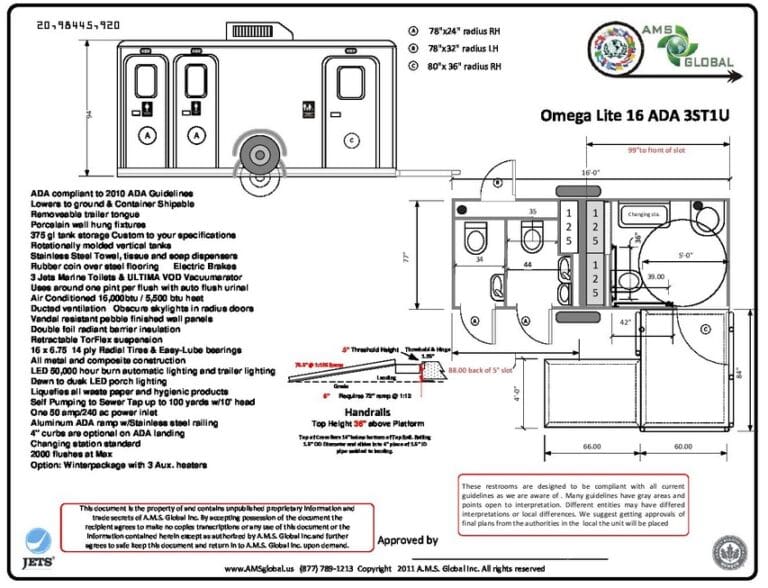

ADA Omega Lite Restroom & Shower Plans

ADA compliant to 2010 ADA Guidelines
Lowers to ground & Container Shipable
Removeable trailer tongue
Porcelain wall hung fixtures
375 gl tank storage Custom to your specifications
Rotationally molded vertical tanks
Stainless Steel Towel, tissue and soap dispensers
Rubber coin over steel flooring Electric Brakes
3 Jets Marine Toilets & ULTIMA VOD Vacuumarator
Uses around one pint per flush with auto flush urinal
Air Conditioned 16,000btu / 5,500 btu heat
Ducted ventilation Obscure skylights in radius doors
Vandal resistant pebble finished wall panels
Double foil radiant barrier insulation
Retractable TorFlex suspension
16 x 6.75 14 ply Radial Tires & Easy-Lube bearings
All metal and composite construction
LED 50,000 hour burn automatic lighting and trailer lighting
Dawn to dusk LED porch lighting
Liquefies all waste paper and hygienic products
Self Pumping to Sewer Tap up to 100 yards w/10′ head
One 50 amp/240 ac power inlet
Aluminum ADA ramp w/Stainless steel railing
4″ curbs are optional on ADA landing
Changing station standard
2000 flushes at Max
Option: Winterpackage with 3 Aux. heaters

Download the restroom skid options here
